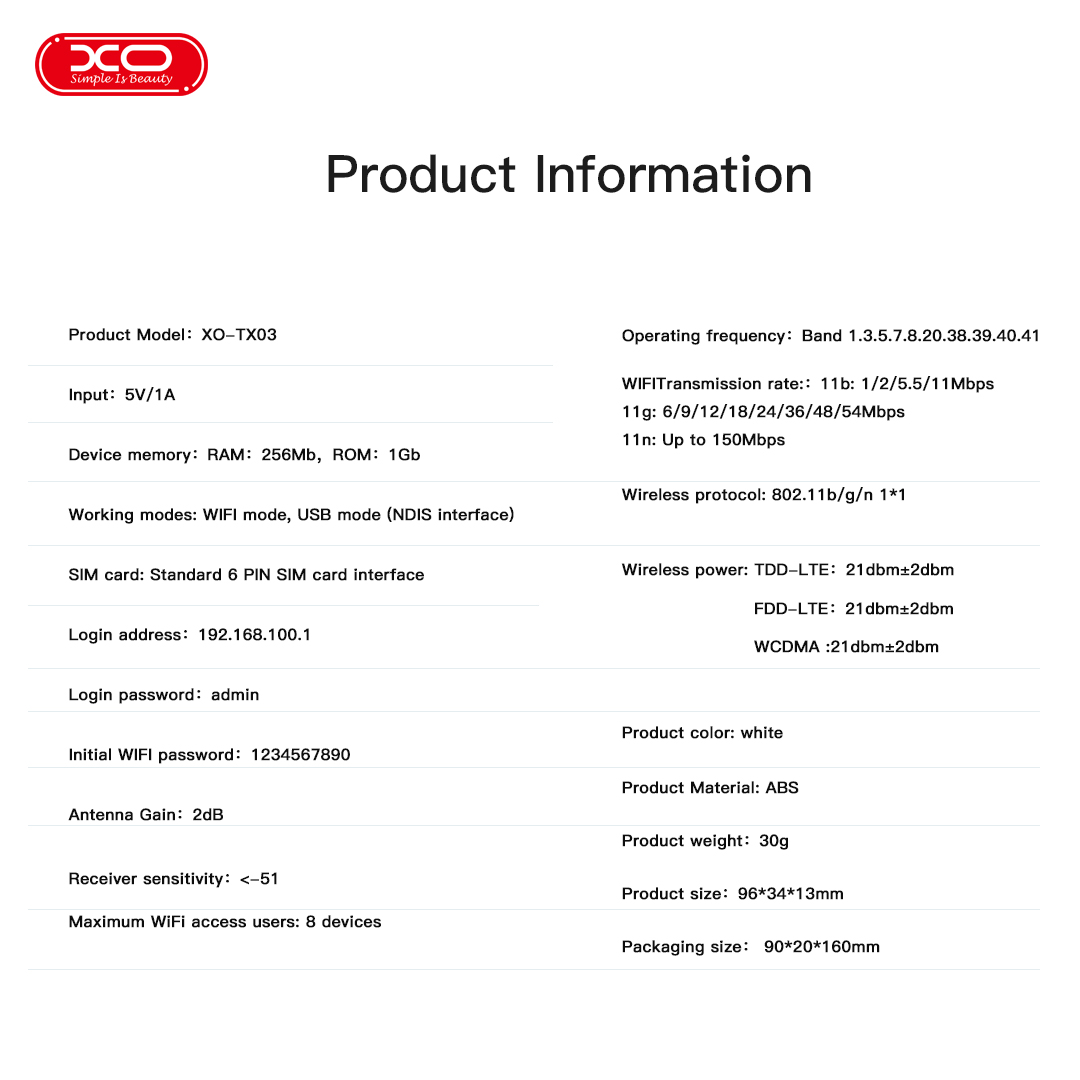

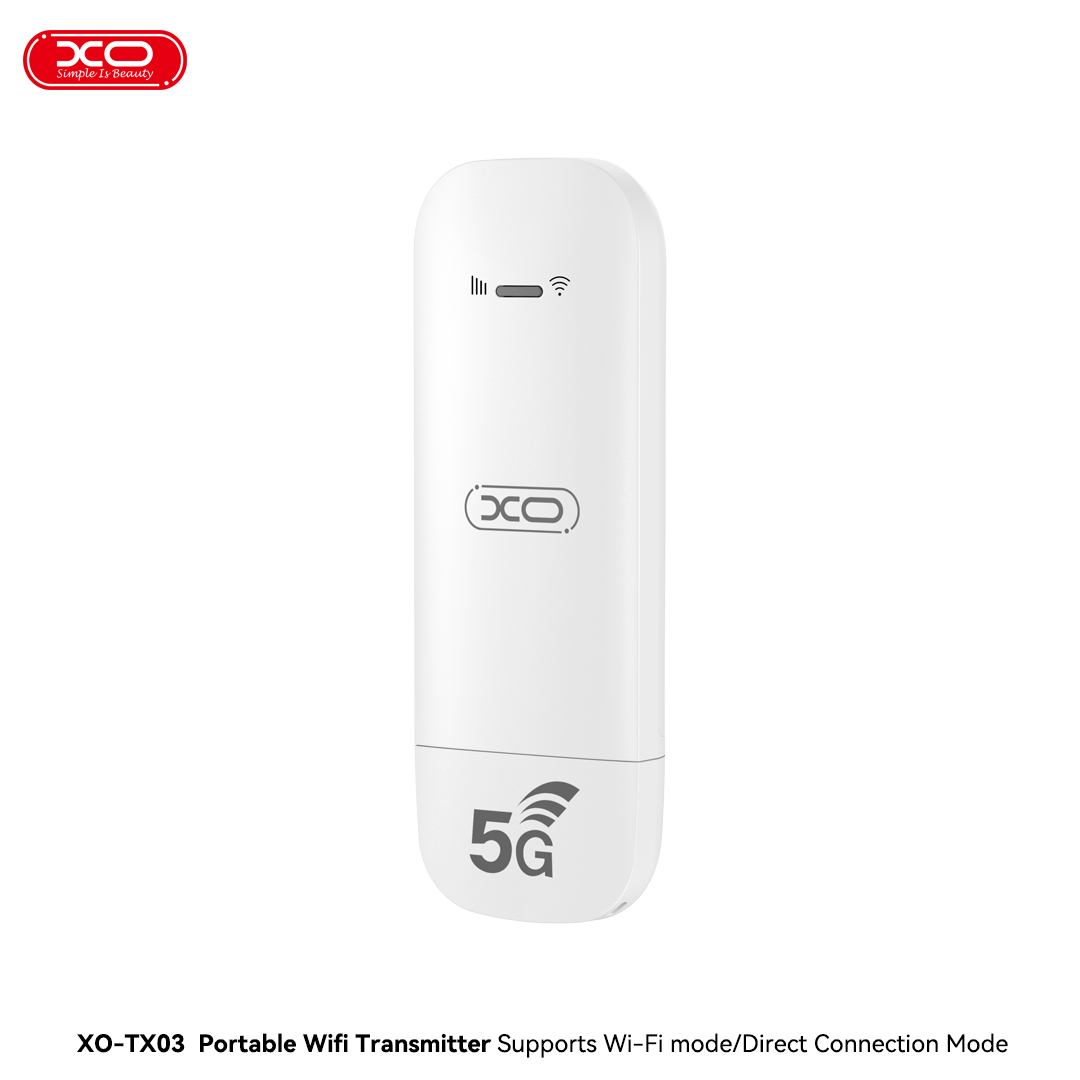

■Product Model: XO-TX03 (European Version; specific compatibility requires SMI within the product's “operating frequency bands”)
■Device Memory: RAM: 256Mb, ROM: 1Gb
■Operating Modes: WIFI Mode, USB Mode (NDIS Interface)
■Input: 5V/1A
■SIM Card: Standard 6-pin SIM card interface, compliant with 3GPP 31.101 and 31.102
■Login Address: 192.168.100.1
■Login Password: admin
■Initial WiFi Password: 1234567890
■Antenna Gain: 2dB
■Receiver Sensitivity: <-51dBm
■Maximum WiFi Users: 8 devices
■Product Color: White
■Product Weight: 30g
■Product Dimensions: 96*34*13mm
■Accessories: User Manual
■Material: ABS
■Wireless Security: WPA-PSK/WPA2-PSK (default)
■Wireless Protocol: 802.11b/g/n 1*1
■Operating Frequencies: Bands 1, 3, 5, 7, 8, 20, 38, 39, 40, 41 (4G Bands) (4G Network Standards: CAT 4; LTE-FDD: 1 3 7 8 20; LTE-TDD: 40; WCDMA: B1 B8)
■Transmit Power:
TDD-LTE: 21dBm ± 2dBm
FDD-LTE: 21dBm ± 2dBm
WCDMA: 21dBm ± 2dBm
■Wi-Fi Data Rates:
11b: 1/2/5.5/11Mbps
11g: 6/9/12/18/24/36/48/54Mbps
11n: Up to 150Mbps
■LTE Features: Supports up to 3GPP R8 CAT4 FDD downlink with MIMO
LTE FDD: Max downlink 150Mbps, max uplink 50Mbps
LTE TDD: Max downlink 130Mbps, max uplink 50Mbps
■UMTS Features: Supports 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA, and WCDMA. Supports QPSK, 16-QAM, and 64-QAM modulation. DC-HSDPA: Maximum downlink rate 42Mbps HSUPA: Maximum uplink rate 5.76Mbps WCDMA: Maximum downlink rate 384Kbps, maximum uplink rate 384Kbps
■Transmit Power: Class 3 (24dBm±1/-3dB) for WCDMA bands
Class 3 (23dBm±2dB) for LTE-FDD bands
Class 3 (23dBm±2dB) for LTE-TDD band
Class 4 (33dBm±2dB) for GSM900
Class 1 (30dBm±2dB) for DCS1800
Class E2 (26dBm±3dB) for DCS1800 8-PSK
Class E2 (27dBm±3dB) for GSM900 8-PSK
Special Note: Currently supported in most regions of Africa, Europe, and the Middle East. Not supported in Southeast Asia requiring the B5 band. Not supported in Taiwan, Philippines, South Korea, or Japan.
