CR05 Upgraded Magic Bulb 300W Pixel Camera

■Main Control Chip:XM530

■Networking:Single-band WiFi(2.4G)-2.4G+Bluetooth

■APP operating system: Android, IOS

■Detection distance:0~12 meters

■Pixel:2304*1296 3MP APP:Heart Attachment PRO

■Detection Angle:96°

■Alarm Mode:Detection Mode:Motion Detection, Humanoid Detection

■Detection distance:0~12 meters

■Detection Angle:96

■Alarm mode: speaker alarm, alarm video, message push, picture push, video push (need to open cloud storage)

■PTZ: PTZ Angle: Horizontal 355° Vertical 90

■ RPM: Horizontal 30°/sec Vertical 20°/sec

■Night vision mode: full-color night vision: support

■Infrared: Infrared LED (dot matrix 6pcs 20mil) Distance 20 meters

■White light: white LED (20pcs white 1W) distance 15 meters

■Audio: Built-in speaker: 1W

■Built-in microphone: listening range 10 meters

■Lens: Focal length: 4mm

■Aperture: F2.0

■Storage: Cloud storage: Cloud storage (alarm video/all-day video)

■Local storage: TF card (maximum support 128GB)

■Power: Power supply: AC100-240V

■Maximum working power: 15W

■Other: Working Environment: Indoor

■Operating Temperature:-20°~+60

■Operating Humidity:10%-90%RH

■Accessories:Camera x1 Instruction manual x1 Screw kit x1

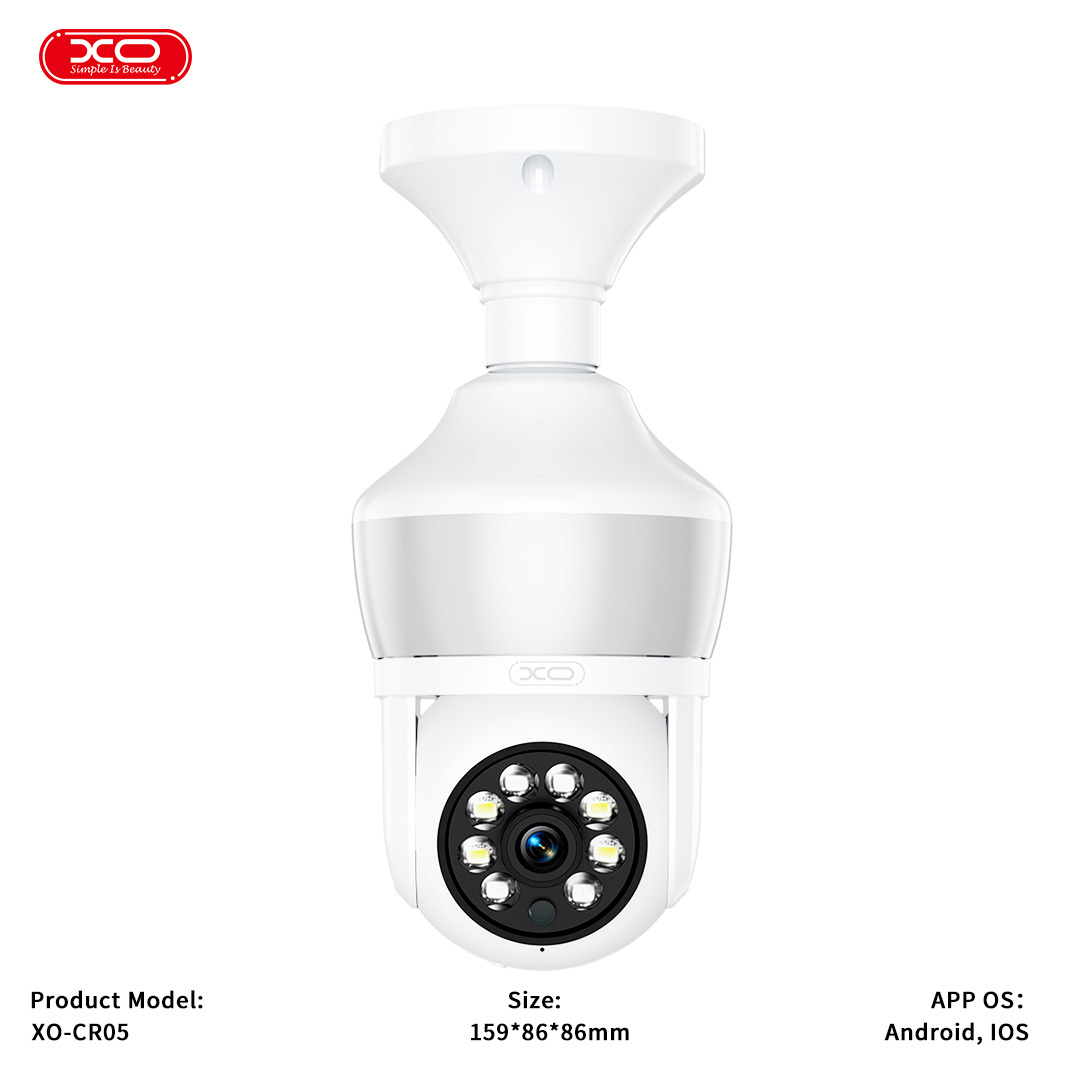

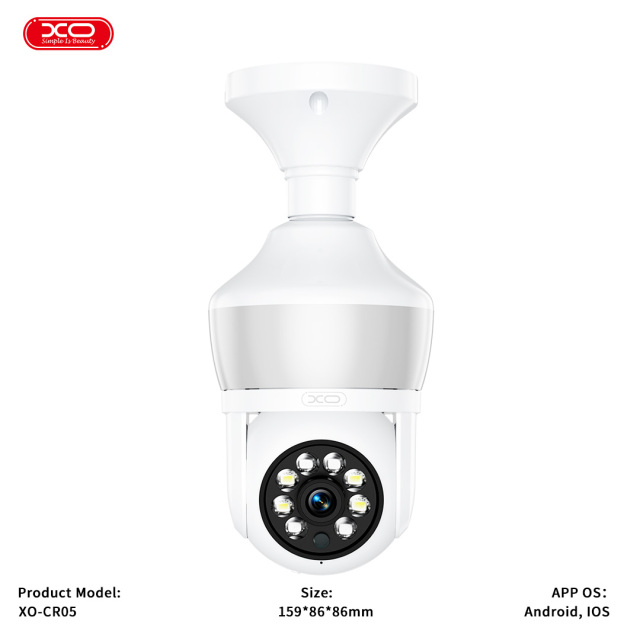

Bulb Design with Integrated Smart Camera Functionality
The XO CR05 adopts a bulb‑like housing combined with a built‑in 3MP WiFi camera, delivering surveillance capabilities in a disguised form factor. Measuring 159 by 86 millimeters and weighing 243 grams, this unit can be installed using a standard E27 screw base. Its 2304×1296 resolution offers a clear viewing experience through a 4mm lens with F2.0 aperture. A built‑in speaker and microphone support two‑way audio, while the camera supports both Android and iOS systems via the Heart Attachment PRO app. Operating solely on a 2.4G WiFi security camera connection, it integrates with Bluetooth for added network pairing flexibility.

Motorized PTZ Movement and Motion Detection Modes
Equipped with pan‑tilt functionality, this device offers a horizontal range of 355 degrees and vertical movement up to 90 degrees. The motorized motion includes horizontal movement at 30 degrees per second and vertical movement at 20 degrees per second. For coverage and response, its motion detection includes standard movement sensing and humanoid pattern detection. Alarm modes include audible alerts, notification push, and storage‑triggered video capture. When cloud storage is enabled, options expand to video and image push. Detection works within 0 to 12 meters, operating as a responsive WiFi smart camera system.

Lighting Components and Night Vision Performance
To support all‑day monitoring, the camera incorporates both infrared and visible light LEDs. Six infrared dots provide up to 20 meters of range in darkness, while 20 white 1W LEDs extend visibility up to 15 meters. Full‑color night vision is supported, delivering detailed feedback in low‑light conditions. Its built‑in audio system includes a 1W speaker and a microphone with 10‑meter pickup range, adding contextual awareness to the recorded footage. Designed for indoor environments, this mini WiFi camera functions under temperatures ranging from -20 to 60 degrees Celsius and humidity levels between 10% and 90%.




Product Advantages

Dual Wireless Connectivity and Flexible Storage Options
The product operates on a single-band 2.4G WiFi camera network and also includes Bluetooth support for easier connection setup. This dual connectivity improves accessibility when setting up the device on Android or iOS. For storage, it supports both cloud-based options and local TF card insertion with a maximum capacity of 128GB. Cloud storage enables alarm video and continuous video capture modes, making it a secure WiFi security camera solution that supports flexible data retention methods depending on the user’s needs.

Integrated Audio and Real-Time Alert Functions
Equipped with a built‑in 1W speaker and microphone, the unit supports real-time two-way audio for live communication. Alarm features include voice alerts, video triggers, message notifications, and push picture support when detection events occur. These features enhance the responsiveness of the WiFi smart camera in dynamic environments. Audio coverage supports up to 10 meters, helping users monitor conversations or environmental sounds. The system can be activated through app integration, combining sound and motion-based triggers for a comprehensive indoor security setup.

Adaptive Lighting and Panoramic Surveillance Capabilities
The combination of PTZ controls and dual lighting systems gives this mini WiFi camera extended monitoring reach and improved adaptability. It rotates nearly full circle horizontally and tilts vertically for floor-to-ceiling coverage. The dual lighting system—with 6 infrared and 20 white LEDs—ensures clear night footage with infrared range up to 20 meters and visible light range up to 15 meters. Combined with motion and humanoid detection, the device delivers balanced surveillance across light conditions and times of day, all managed through a mobile application interface.



Use Scenarios

Home Monitoring During Night and Day
Installed in indoor spaces such as living rooms or entryways, the device operates around the clock with its full‑color night vision and dual lighting setup. Its 3MP lens and 4mm focal length offer a wide field of view with support for both automatic motion alerts and user-triggered recordings. This makes it an effective WiFi security camera for daily home observation. Whether used during daylight hours or nighttime, its built-in LEDs and speaker enable proactive response to movement and sound.

Office Environment Awareness and Audio Pickup
Within an office, the integrated speaker and microphone allow for direct communication or ambient sound monitoring. The 10-meter listening range and motion-triggered alerts help oversee equipment rooms or shared workspaces. App integration enables notifications when unexpected movement occurs, even outside working hours. By combining Bluetooth pairing with WiFi smart camera functionality, users can access the camera feed remotely while benefiting from recorded audio and motion logs.

Indoor Rotational Coverage for Retail or Commercial Use
Retailers and service spaces can use the motorized PTZ function for floor‑level observation. Its 355-degree horizontal and 90-degree vertical movement allows repositioning based on layout needs. Users can schedule movements or respond live via the app. With 20 white LEDs supporting visible night capture, this mini WiFi camera functions continuously in settings where light conditions fluctuate. TF card support simplifies video review in environments without permanent cloud connectivity.



About Us

Founded in 2013, XO is a consumer electronics company operating under Three Key Industrial (HK) Co., Ltd. With over a decade of experience, XO specializes in developing and distributing mobile accessories and smart hardware products. Its catalog includes items such as holders, chargers, audio devices, and connected solutions like the WiFi camera and WiFi smart camera ranges. The company maintains an active release cycle, introducing 20 to 30 new models monthly and supporting over 3,000 stocked SKUs. With manufacturing, inspection, and packaging capabilities centralized in China, XO offers both branded and OEM services to global clients, focusing on product reliability and distribution scalability.



FAQ

What type of network does this camera support?
The device supports 2.4G WiFi camera connectivity and Bluetooth for setup.

Can the device store video locally?
Yes, it supports TF card storage with a maximum of 128GB capacity.

Is this camera compatible with Android systems?
Yes, the device can be operated using Android or iOS through the Heart Attachment PRO app.

Does it support night vision?
Yes, it includes infrared and white LEDs for visibility up to 20 and 15 meters respectively, making it a reliable WiFi security camera.

What is the supported power range?
The camera operates using AC 100–240V with a maximum power consumption of 15W.

Add this indoor PTZ bulb camera to your setup now and strengthen your WiFi smart camera lineup!
