■Product Model:XO-CR12
■Product colour: black
■Product size: 44*24*44mm
■Product weight: 23g
■Input parameters: DC 5V/1A
■Battery capacity: 150mAh/3.7V polymer lithium battery
■Battery life: 52 minutes
■Rated power: 0.8W MAX
■Main control chip: TX817NB
■Networking mode: Single-band WiFi (2.4G)-2.4G+Bluetooth
■Bluetooth version: 5.0
■Bluetooth frequency: 2.4GHZ
■Maximum transmit power: 20dBm
■APP name/system: 365CAM Android/iOS
■Mobile phone APP simultaneous viewing video number: 4 units
■Mobile phone APP add camera: 20
■Video resolution: 480p
■Video format: AVI
■Frame number: 25 frames
■Viewing angle: 60 degrees
■Infrared light: Yes
■Night vision distance: 1-2M
■Magnetic suction: support
■Minimum illumination: 1LUX
■Motion Detection Camera Distance：Support mobile alarm to send alarm picture to mobile phone APP (need to pay)
■Compression format: AVI
■Recording range: 5 square metres
■Memory card type: TF compatibility Maximum 128G
■Playback software: VLCPlayer/SMPlayer
■Product material: ABS
■Product accessories: data cable, manual, bracket
Product Description：
Compact Power, Big Coverage

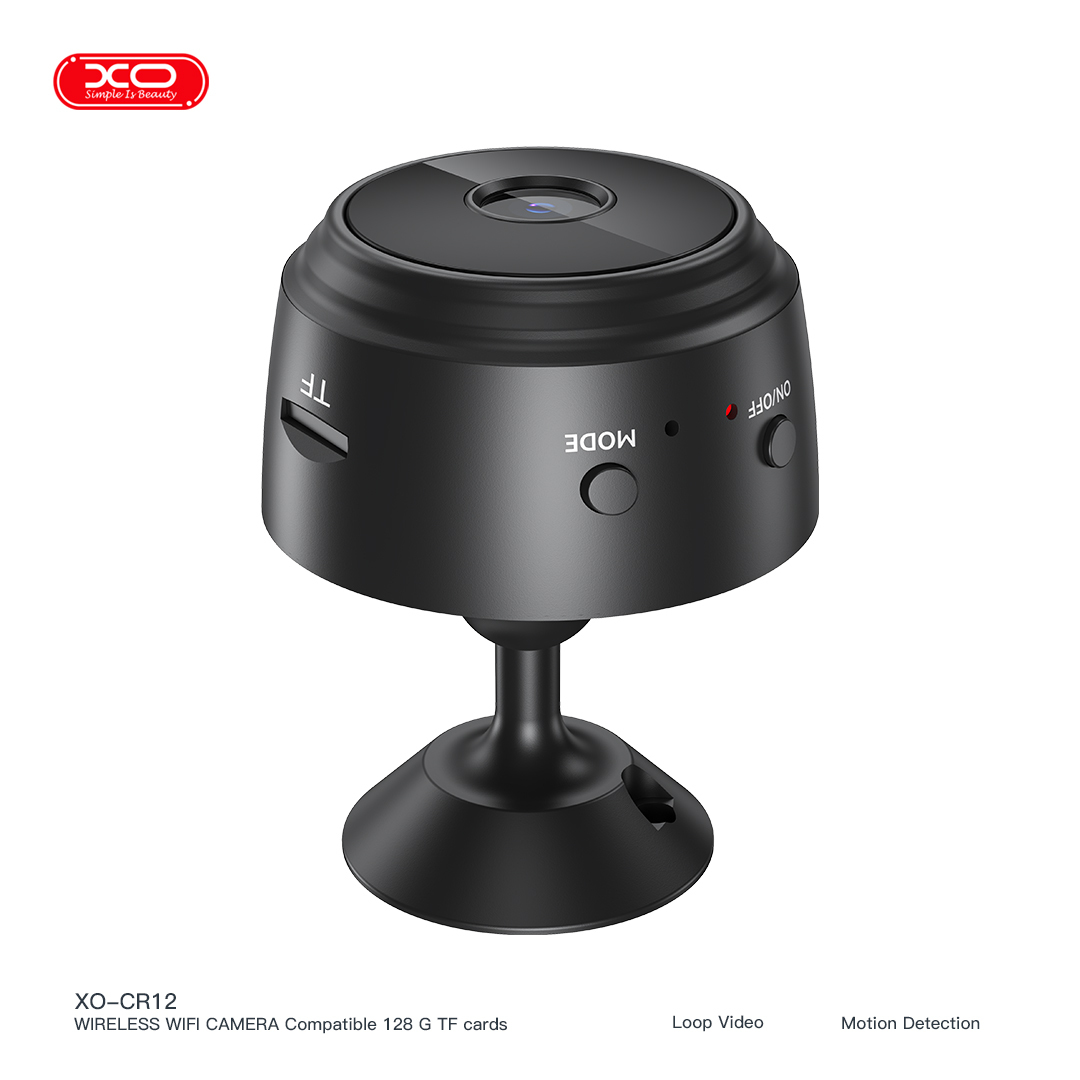

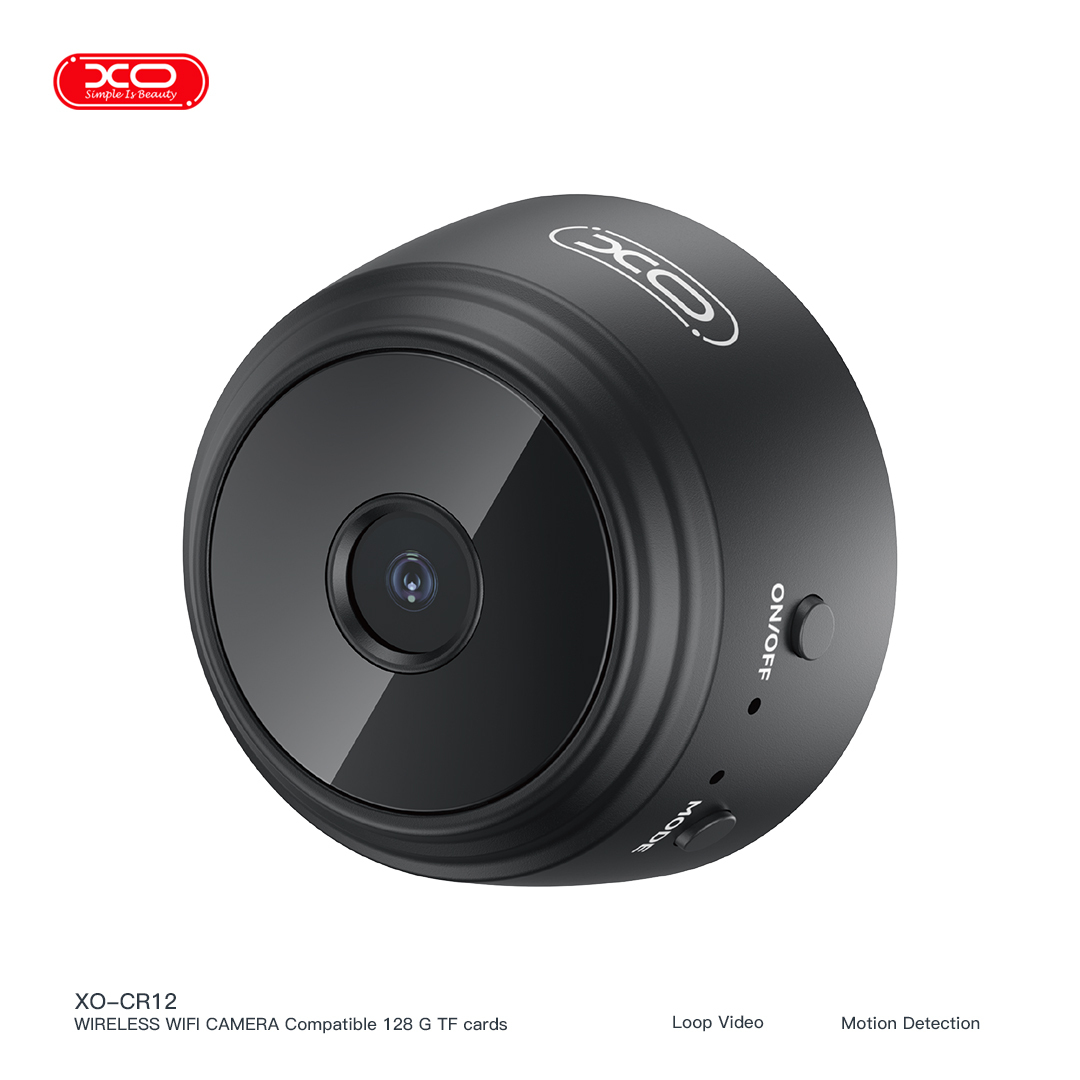

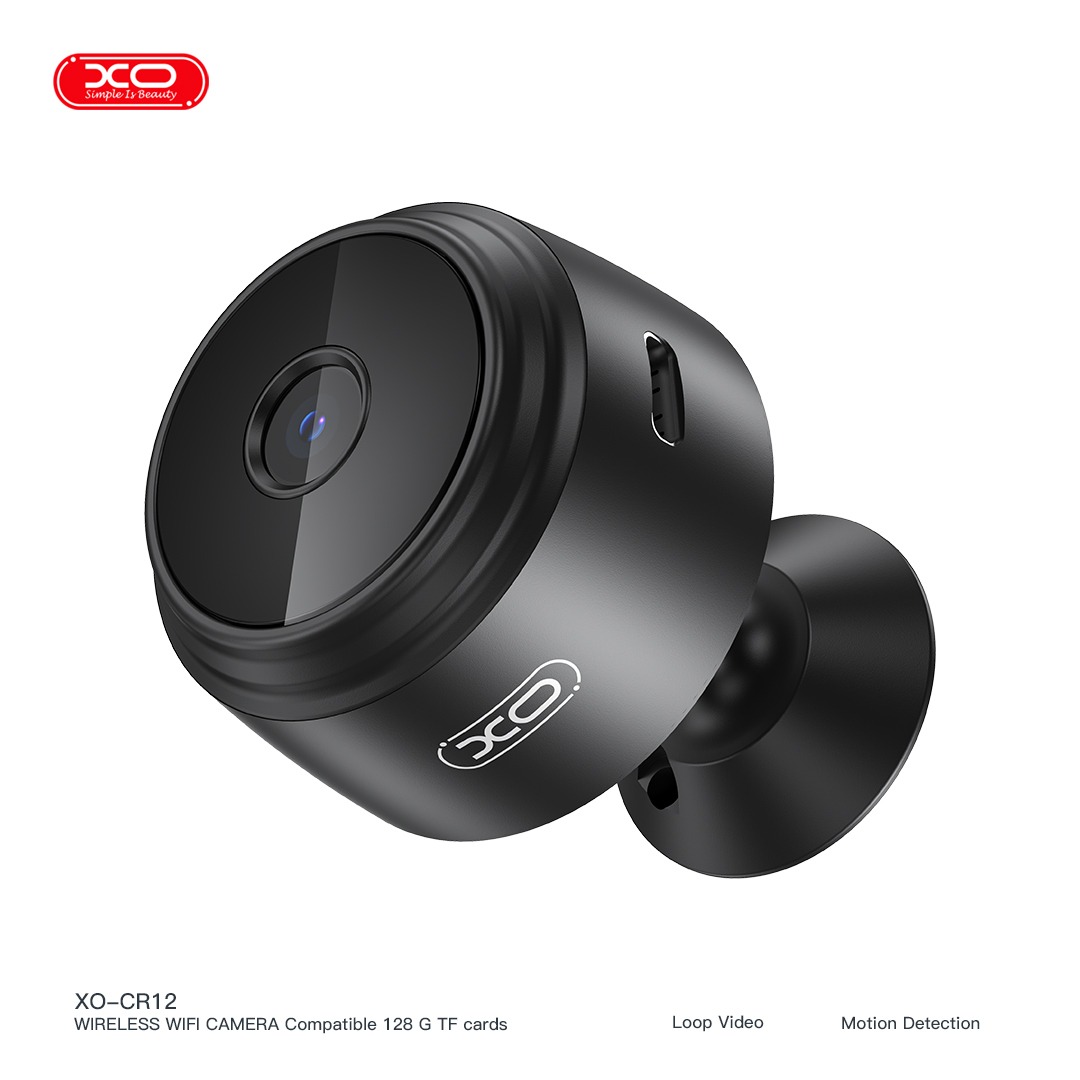

The XO CR12 Mini Wireless WiFi Camera delivers essential WiFi camera functionality in a portable form, ideal for discreet small WiFi camera deployments. Its energy-efficient 150 mAh battery and low‑power chip enable up to several hours of operation on a single charge.
Smart Remote Monitoring Anytime
Equipped with WiFi connectivity, this WiFi smart camera supports remote viewing and live alerts. Motion-activated recordings help businesses secure every corner while minimizing energy waste — smarter security with a smaller carbon footprint.
Easy Integration & Installation

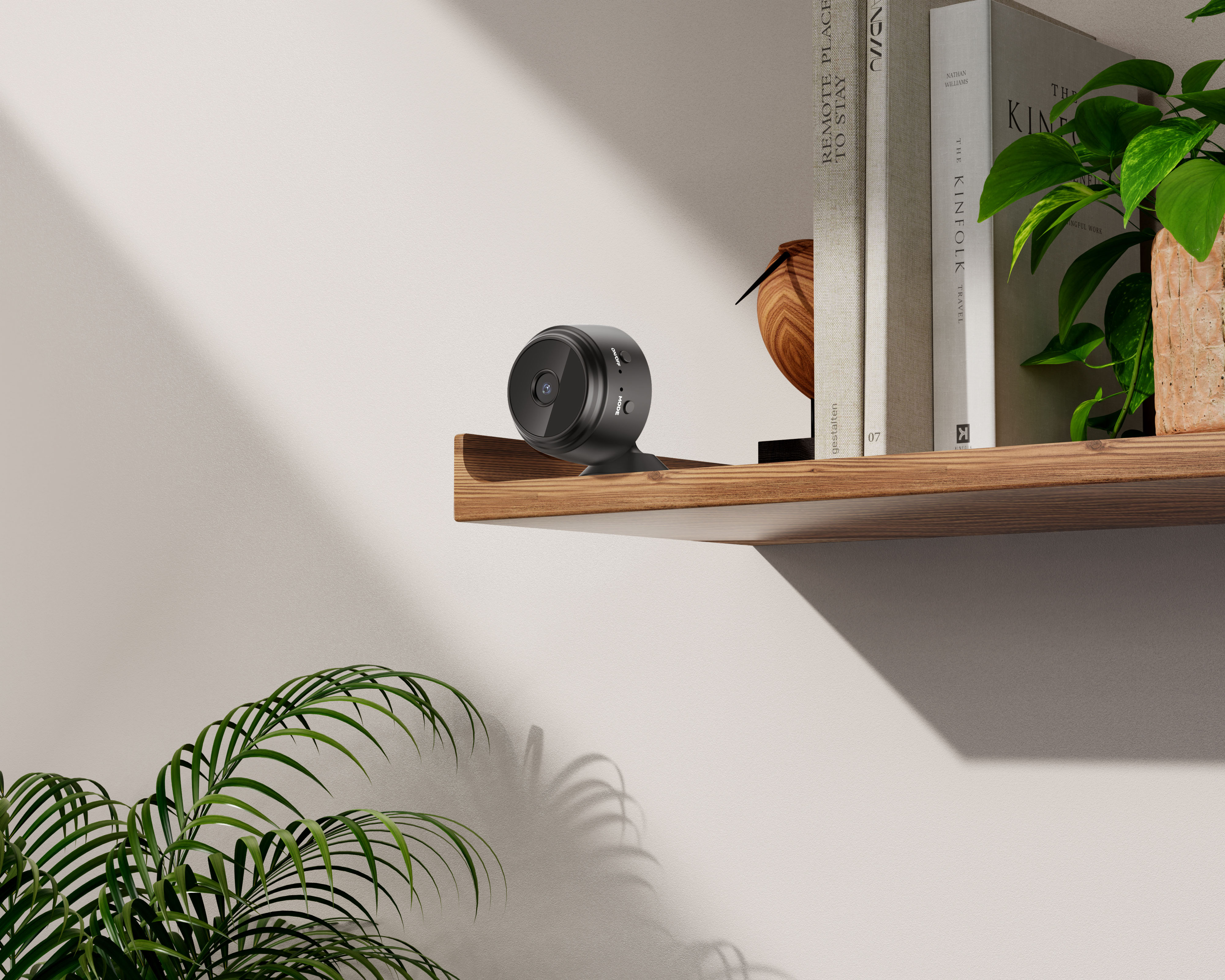

Simple plug‑and‑play setup using standard DC 5V power supply and WiFi. Compact and lightweight, the CR12 mounts anywhere — from desks to display shelves — for seamless integration into any surveillance strategy.
Product Advantages:
The XO CR12 portable security camera demonstrates a minimalist design that prioritizes compactness without compromising on connectivity or battery capacity. Its ABS casing combines robustness with a lightweight profile at 23 grams, permitting quick installation by mini wifi camera suppliers across varied client environments. The magnetic suction mounting system supports flexible deployment options, accommodating on-the-fly repositioning. The integration of single-band WiFi and Bluetooth 5.0 serves dual communication pathways, enhancing reliability in congested wireless environments typical of office or distribution settings. This structural design approach ensures compatibility and modular expansion potential within broader security architectures.
Equipped with advanced power management, this mini wireless wifi camera provides nearly an hour of continuous surveillance using its 150mAh polymer battery, sufficient for short-term deployment scenarios. User interaction is streamlined via the 365CAM app, enabling multi-device live viewing and remote configuration, thus reducing maintenance overhead and improving operational workflows. Motion detection alerts and infrared night vision capabilities enhance situational awareness while minimizing unnecessary data storage. The camera’s AVI compression algorithm and TF card support further bolster usability by facilitating efficient local video retention, crucial for post-event analysis in professional security environments.
In compact office settings, space constraints necessitate unobtrusive observation tools. This wholesale wireless security camera functions as a discreet surveillance element, capable of monitoring restricted access points or sensitive areas without visual disruption. Its portability allows rapid redeployment across rooms or floors as operational priorities shift. The camera’s 2.4GHz WiFi connectivity integrates seamlessly into existing local networks, ensuring real-time streaming via the 365CAM app. Compliance with data security protocols is achievable given encrypted transmission capabilities, making it suitable for corporate security systems requiring flexible, non-invasive monitoring solutions.
distribution stores and event venues benefit from deployable surveillance solutions during peak times or special functions. The XO CR12 portable security camera allows managers and security personnel to establish live video feeds in locations lacking permanent wiring infrastructure. Its magnetic mounting option facilitates swift installation on various surfaces and repositioning as needed. Real-time motion-triggered recording optimizes energy and storage utilization, critical in environments with fluctuating visitor density. Integration with mobile monitoring applications enables security teams to coordinate incident response efficiently, making this mini wireless wifi camera an asset for dynamic, data-driven operational security workflows.
Can I customize the XO CR12 Mini WiFi Security Camera for my brand?
Yes, we offer flexible OEM services for the mini wireless wifi camera series, including the CR12 model. You can customize design and branding to fit your business needs. Our production process ensures consistent quality tailored to your specifications.
What materials and components are used in the XO CR12 camera?
The CR12 camera features a durable ABS housing with energy-efficient electronics centered on the TX817NB control chip. We use a 150mAh polymer lithium battery to maximize reliability while supporting eco-friendly operation.
How do I install the XO CR12 Mini WiFi Security Camera?
Installation is straightforward thanks to the magnetic suction mount, allowing versatile placement without screws or wiring. The device connects via single-band 2.4GHz WiFi and Bluetooth 5.0 for seamless integration with the portable security camera system through the 365CAM app.
What logistics and support options are available for bulk orders?
We provide streamlined shipping and dedicated technical support for wholesale orders of our mini wifi camera supplier products. Our team assists with order tracking, warranty claims, and after-sales service to ensure your supply chain operates smoothly.
